Tree spade loader mounted

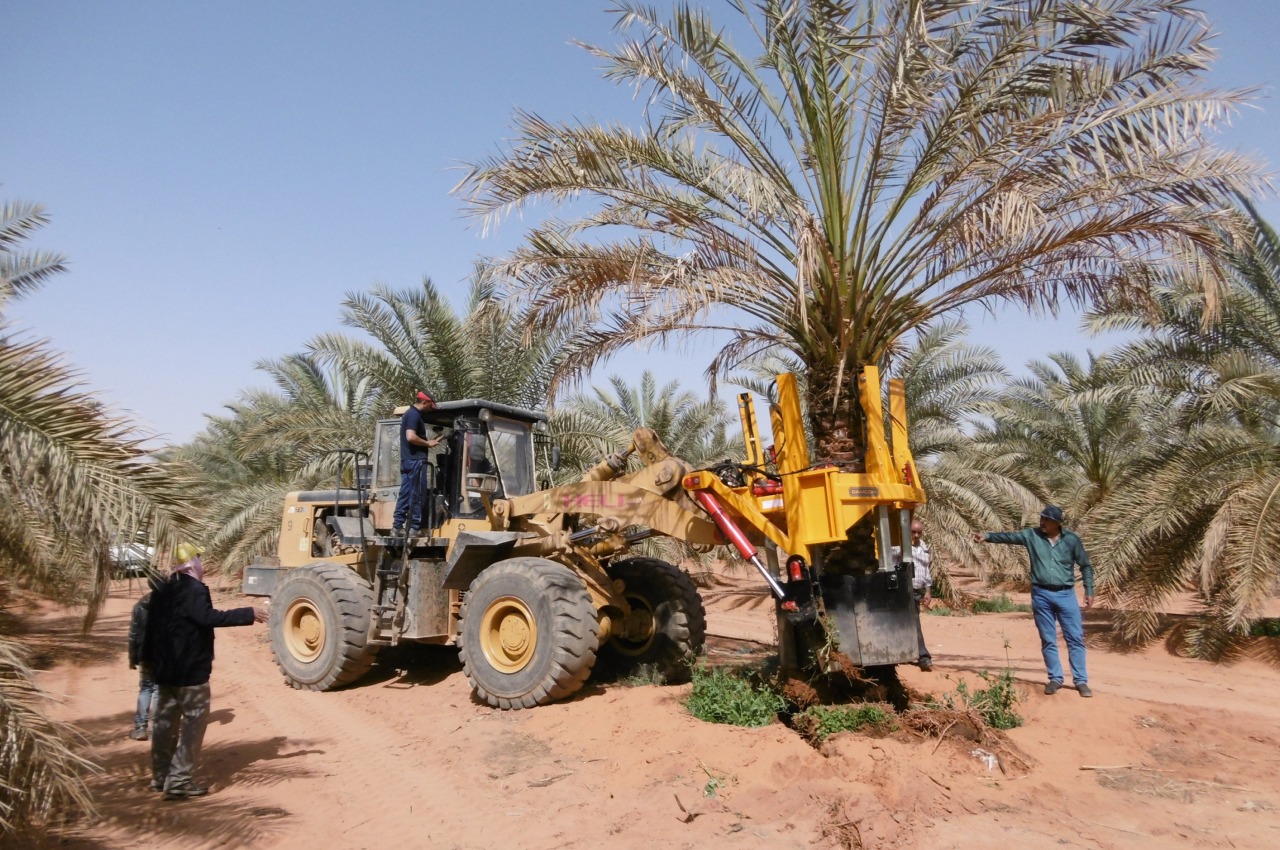

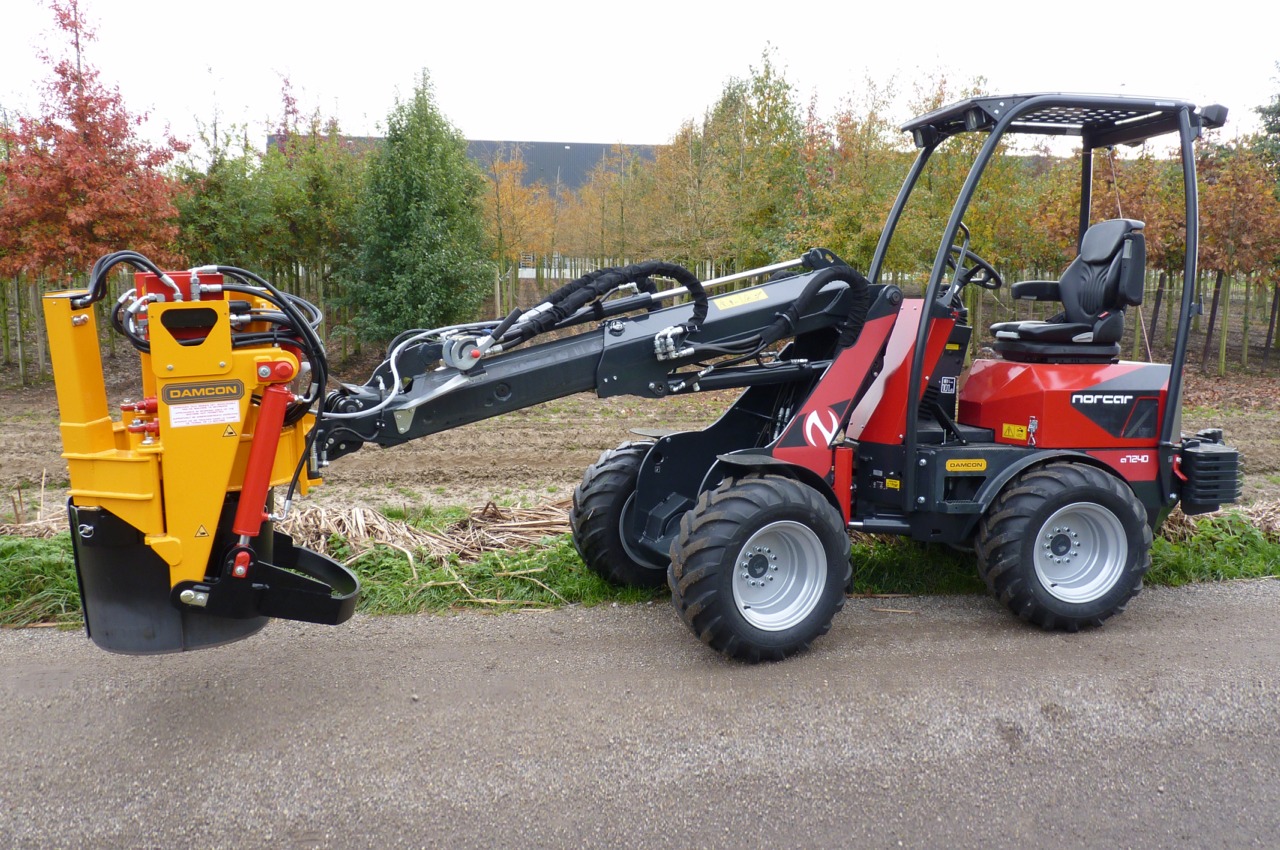

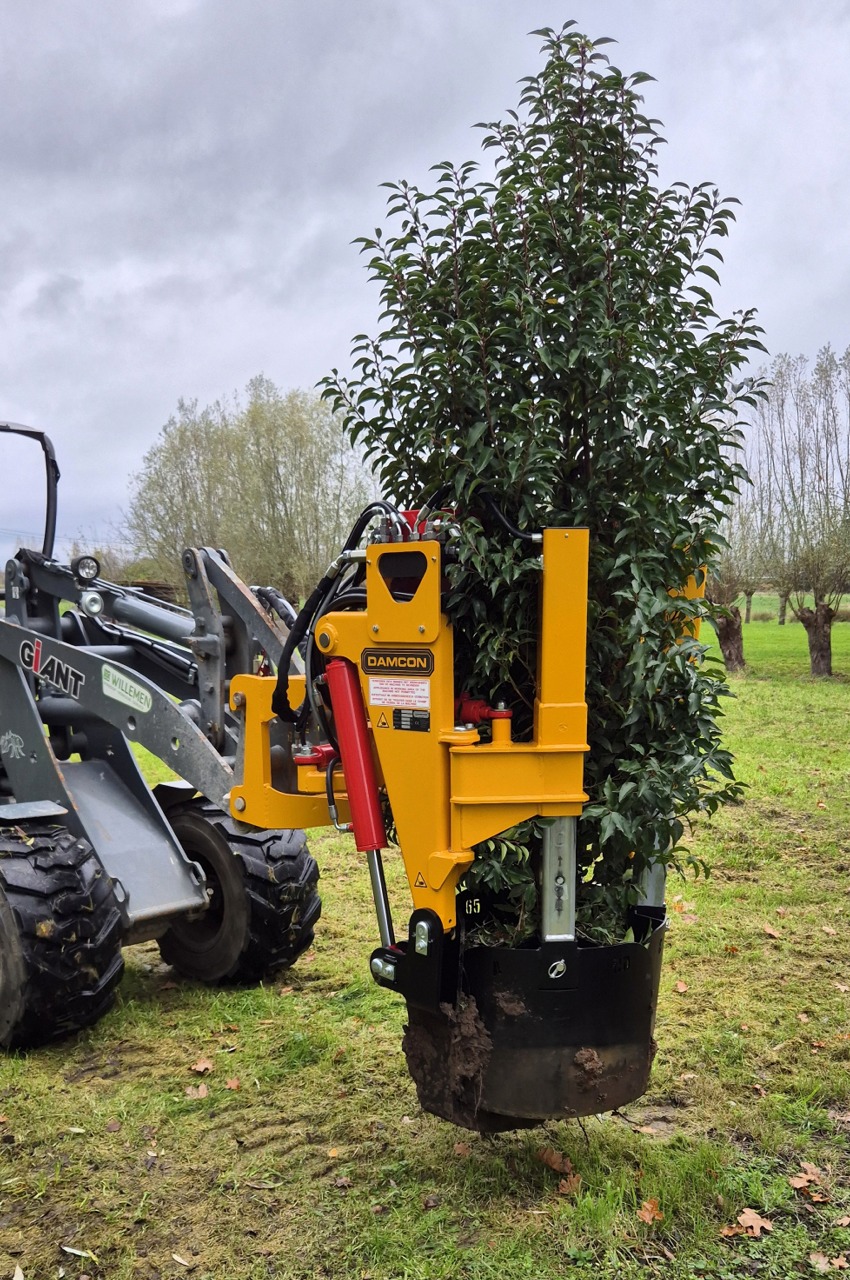

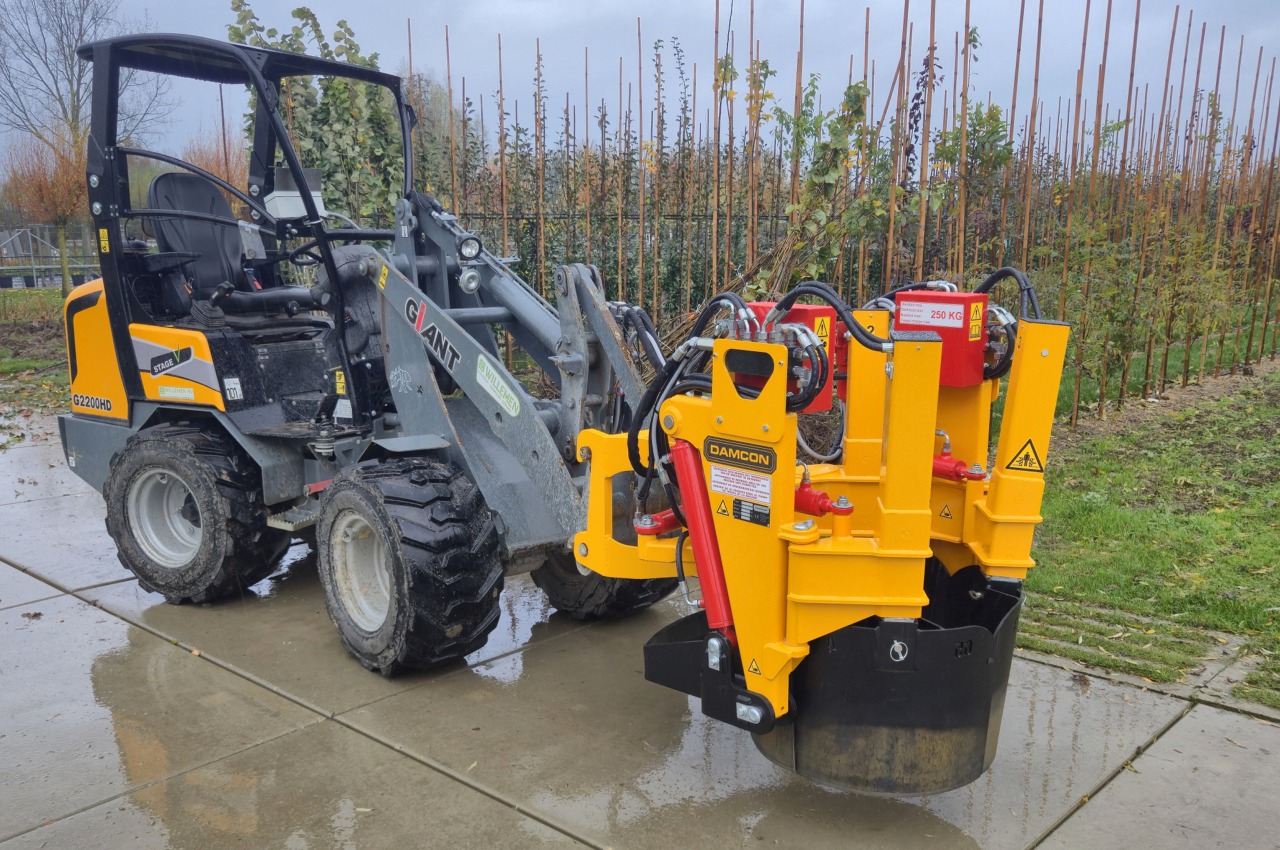

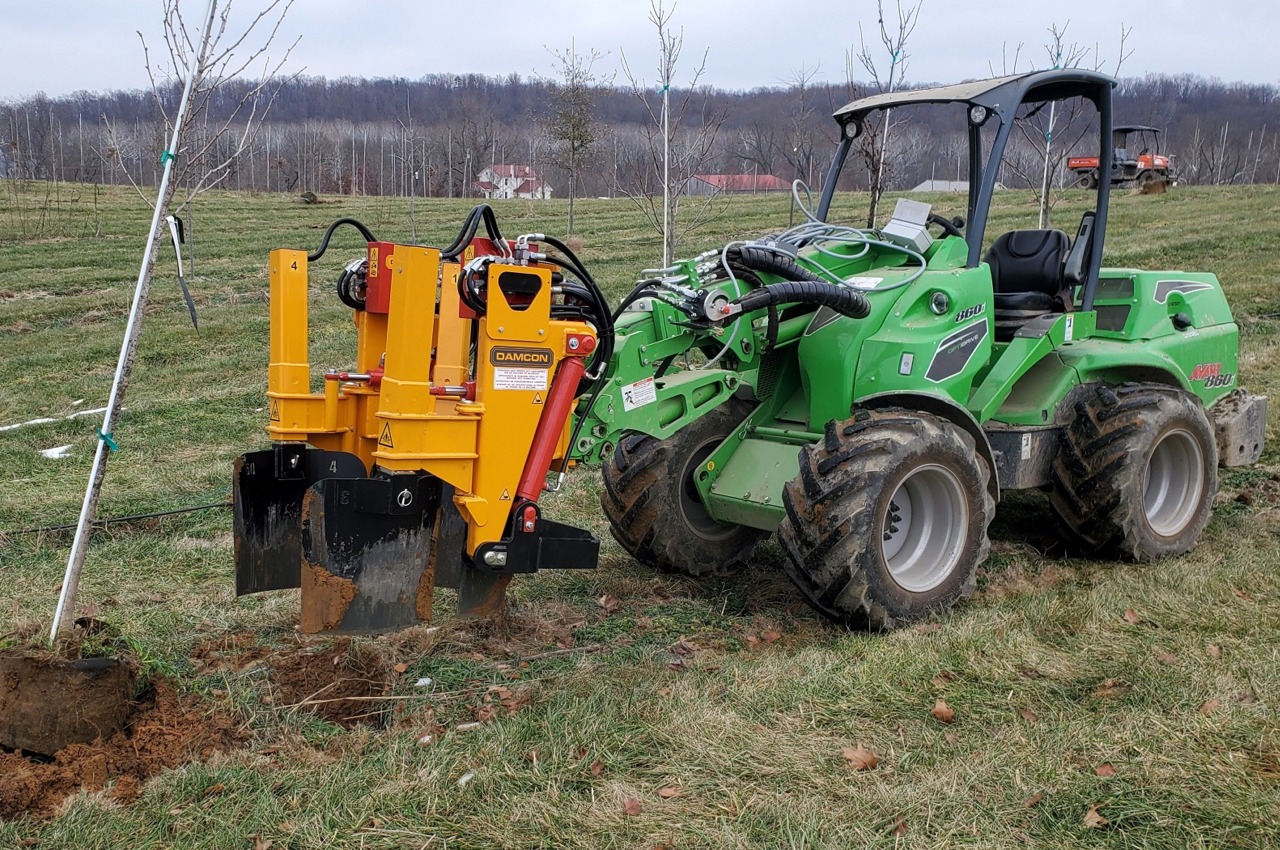

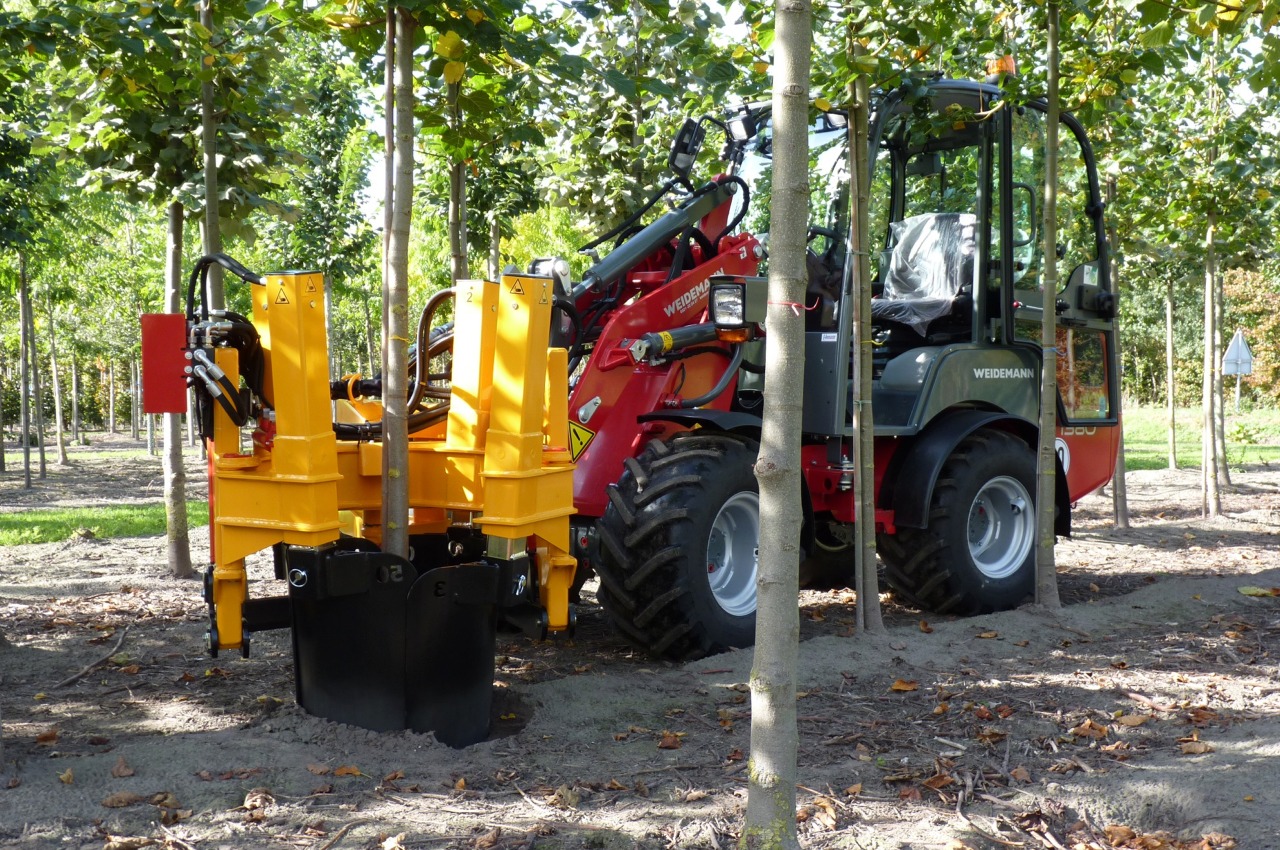

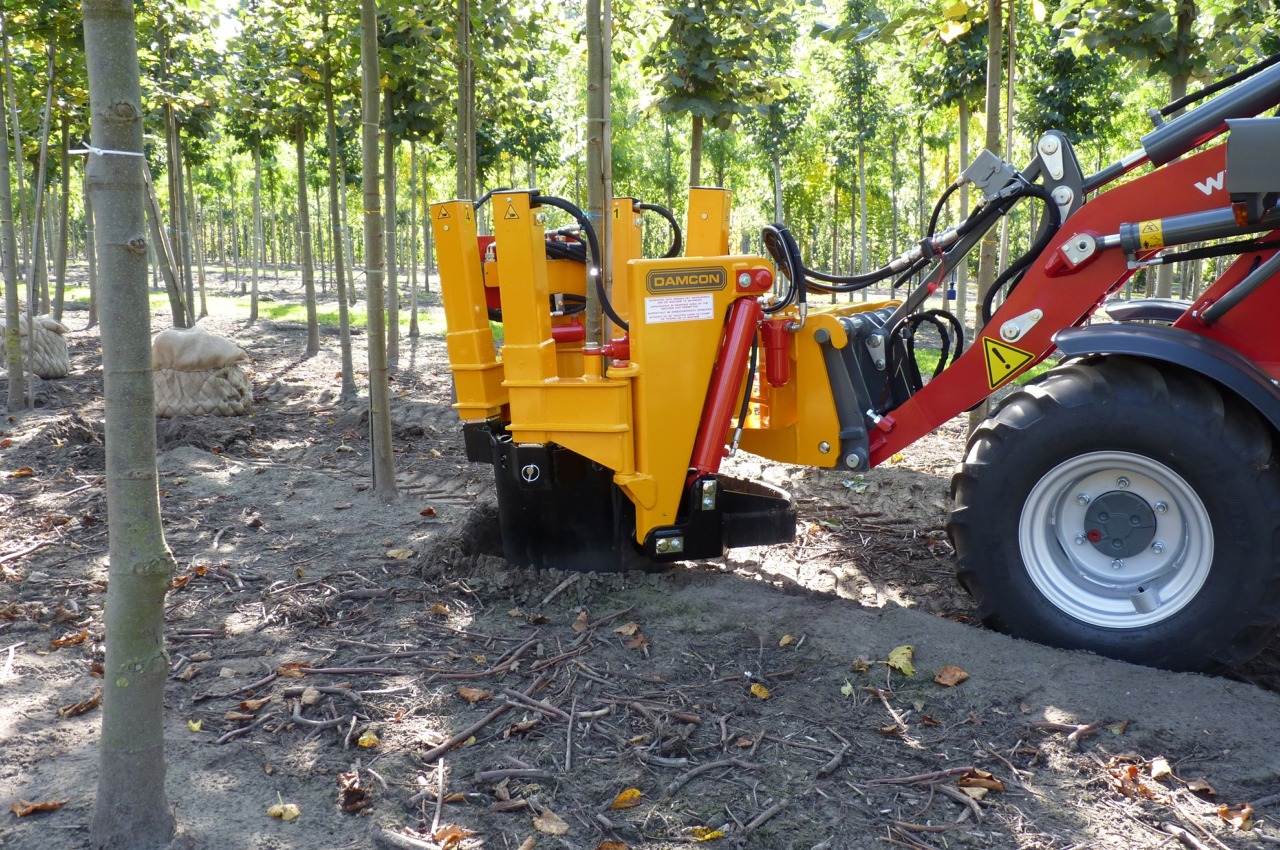

This series of tree spades is designed to be mounted on different types of wheel loaders.
The range in this series consists of several types, the KLR-500 to KLR-2000.
The rootball sizes vary from 25–200 cm.

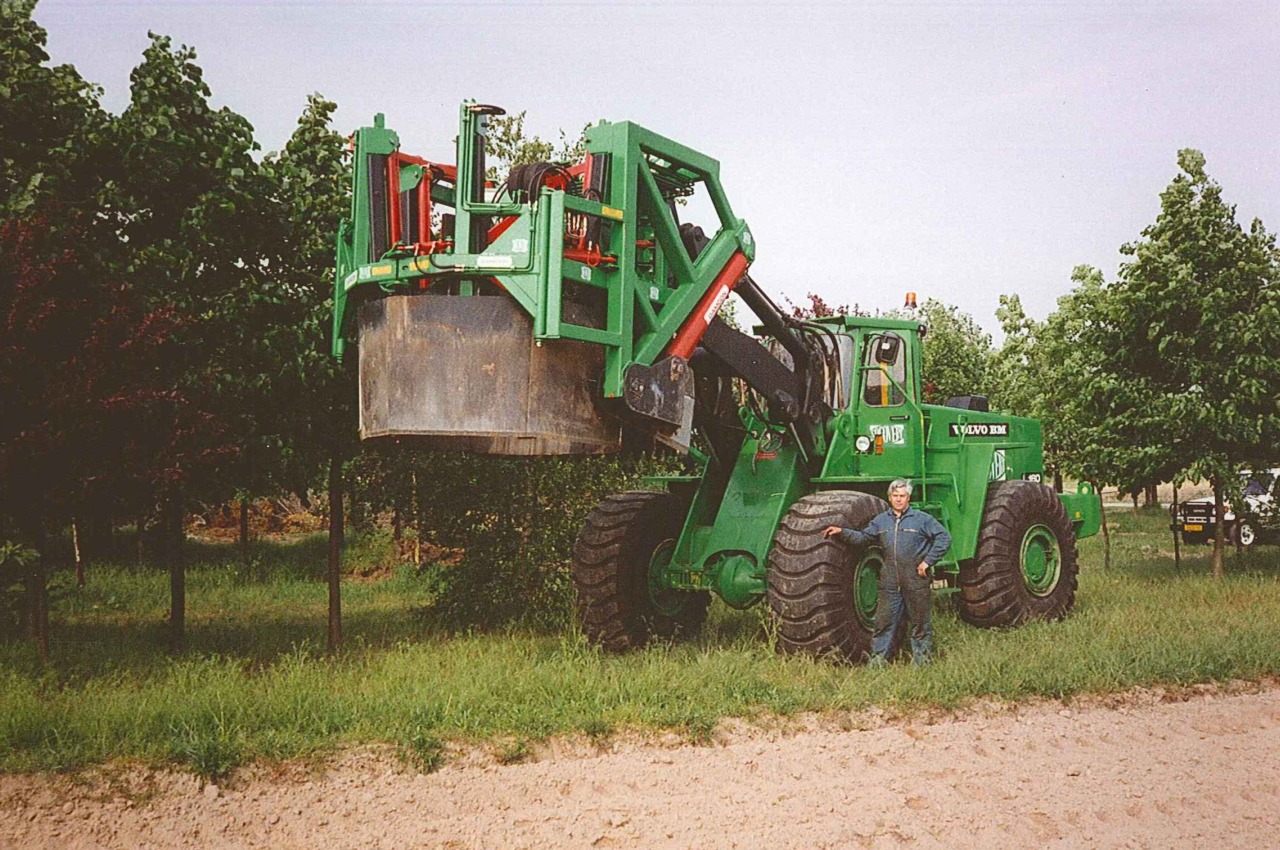

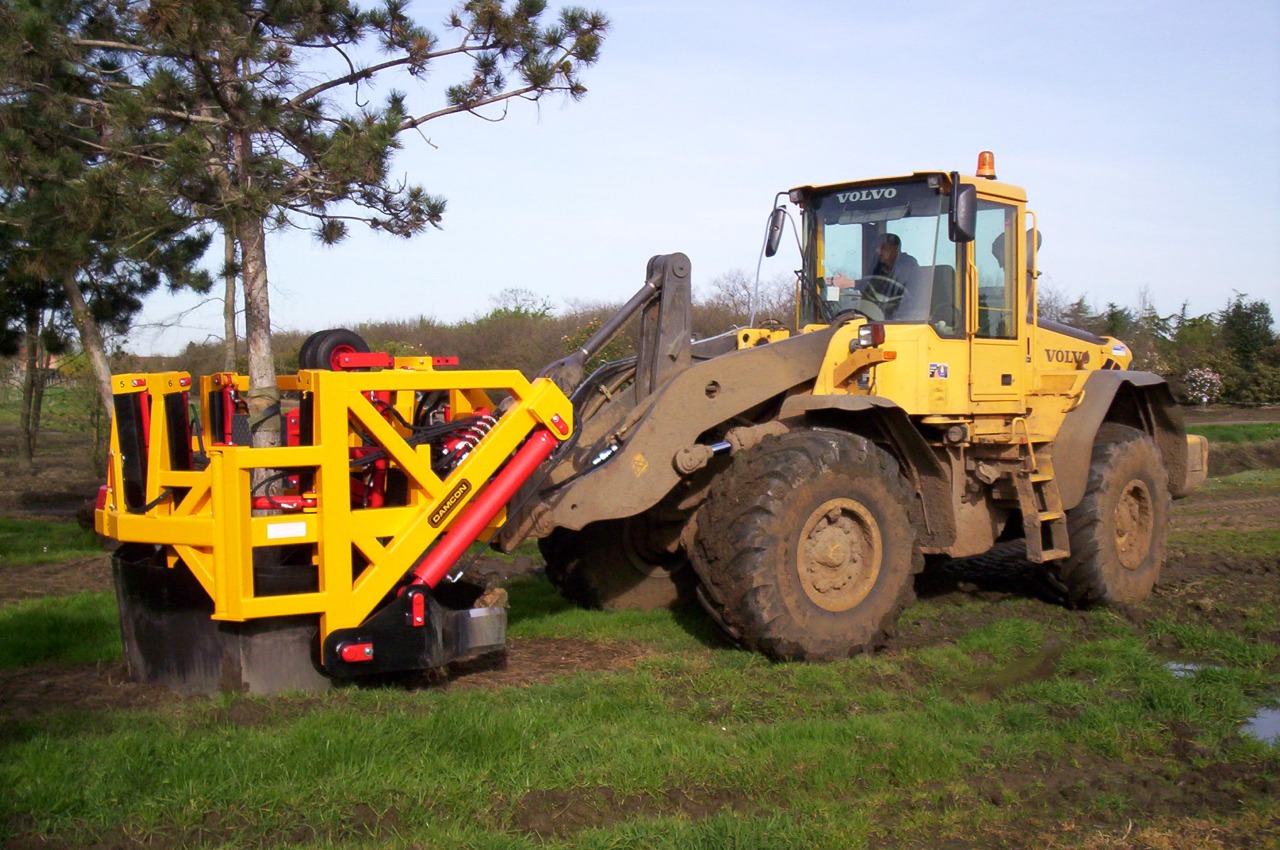

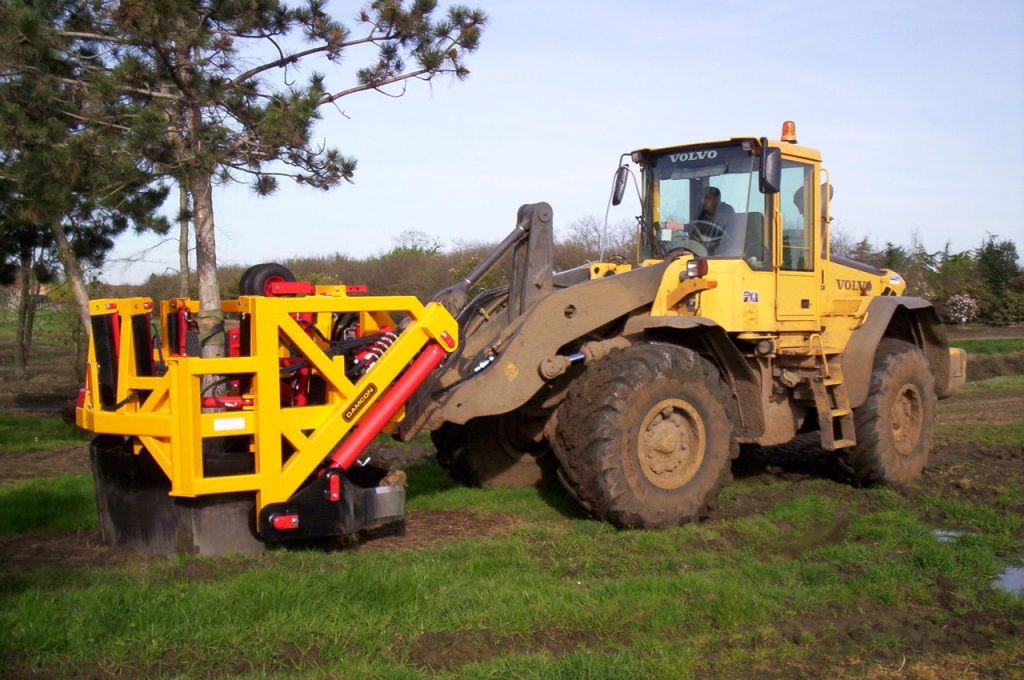

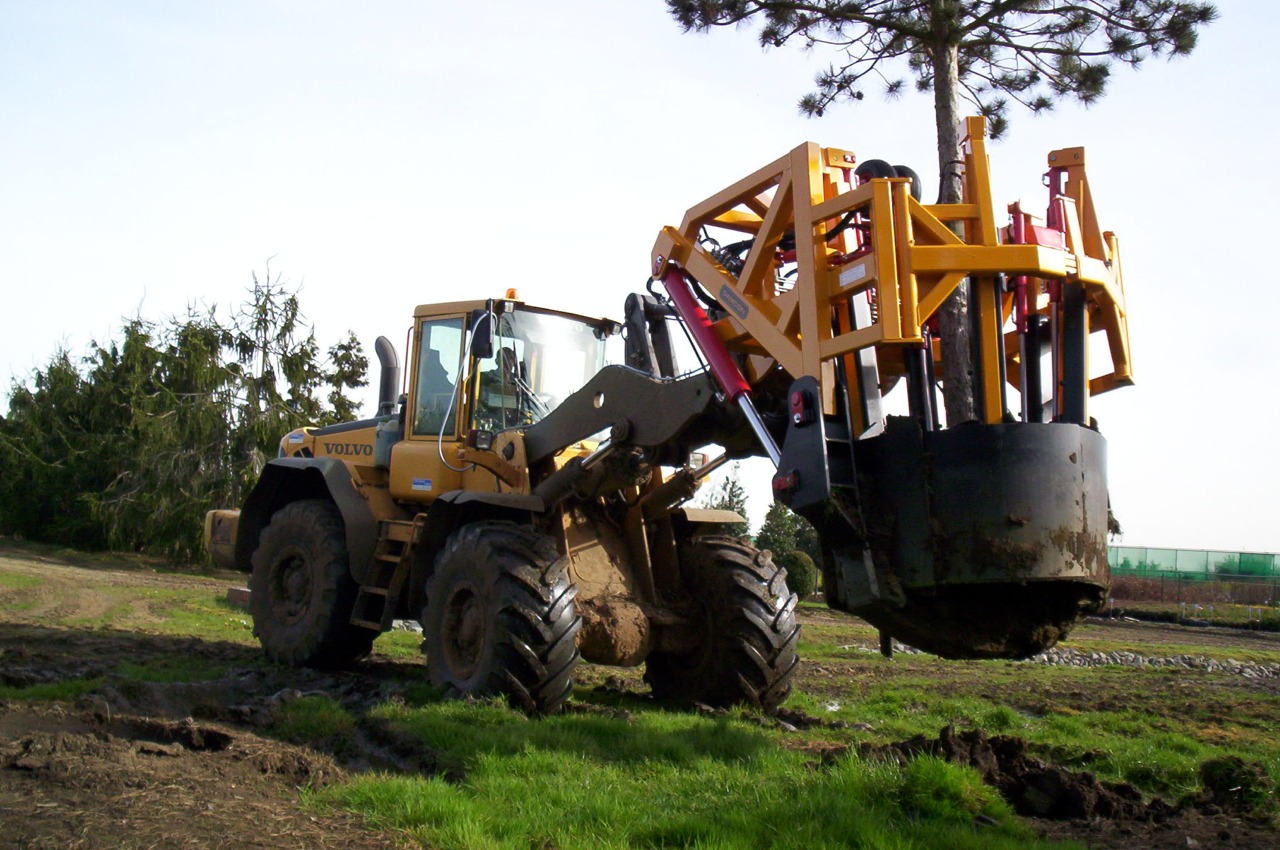

The KLR-1600 and KLR-2000 tree spades are equipped with 6 spades. All types are equipped with undercutting blade.
Click here for another video or click here for another video.
There are 3 types of tree spades:
Type I: 4 spades with undercutting blade.
Operation: The spades go around the tree, close and go down. The undercutting blade cuts under the rootball, returns to the center of the rootball and the rootball with tree is lifted. This also works well for deep roots. The spades are adjustable.
Type II: 2 spades with clamp, without undercutting blade.
peration: The spades go around the tree and the clamp clamps itself around the trunk. The spades go down and the tree with rootball is pulled out of the soil. This principle only works with shallow roots. The spades are adjustable.
Type III: Adjustable spades with undercutting blade
Operation: The spades go around the tree, close and go down. The undercutting blade cuts under the rootball, returns to the center of the rootball and the tree with rootball is lifted.
This system also works well for deep roots. The spades are adjustable.

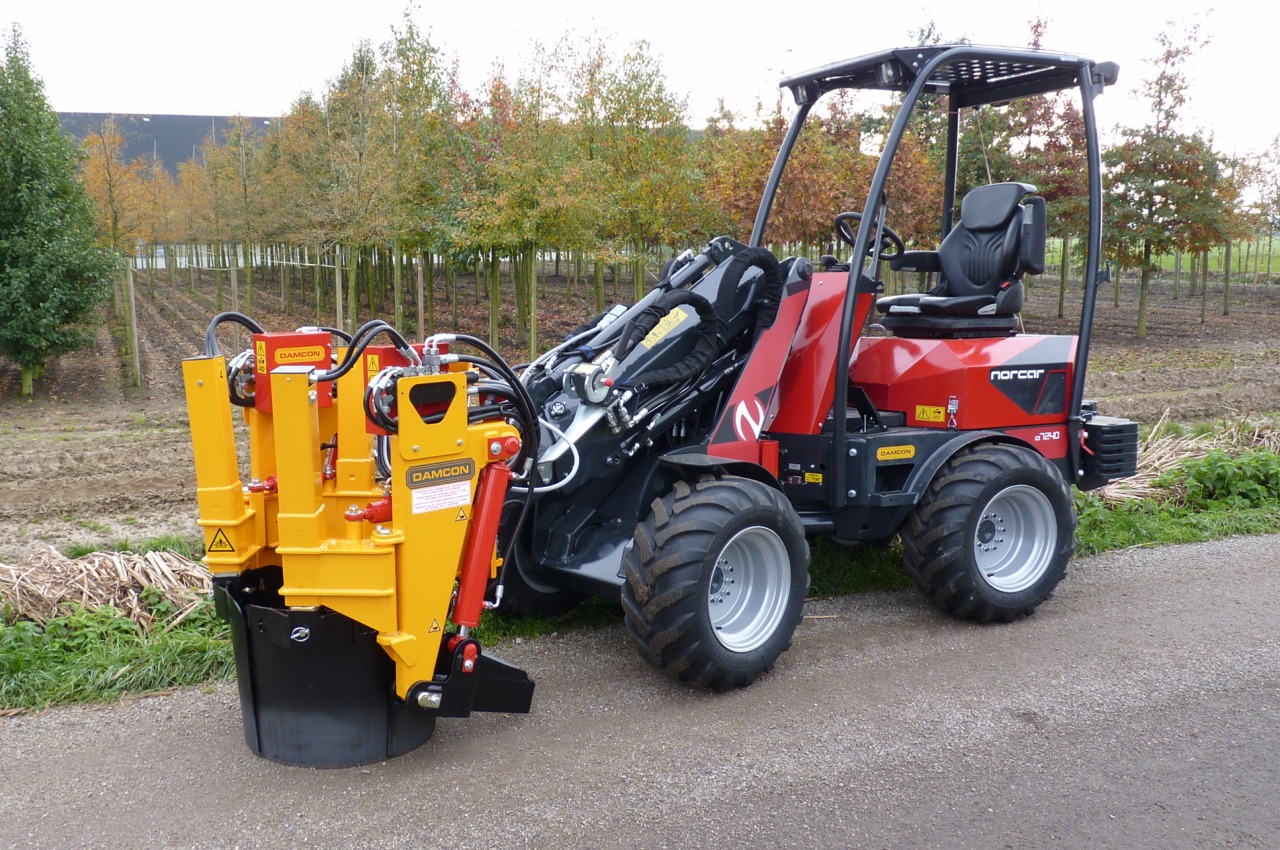

Type I available in KLR-500 AB, KLR-650 AB, KLR-700 AB, KLR-700 HM, KLR-800 AB.
Type II available in KLR-501 AB.

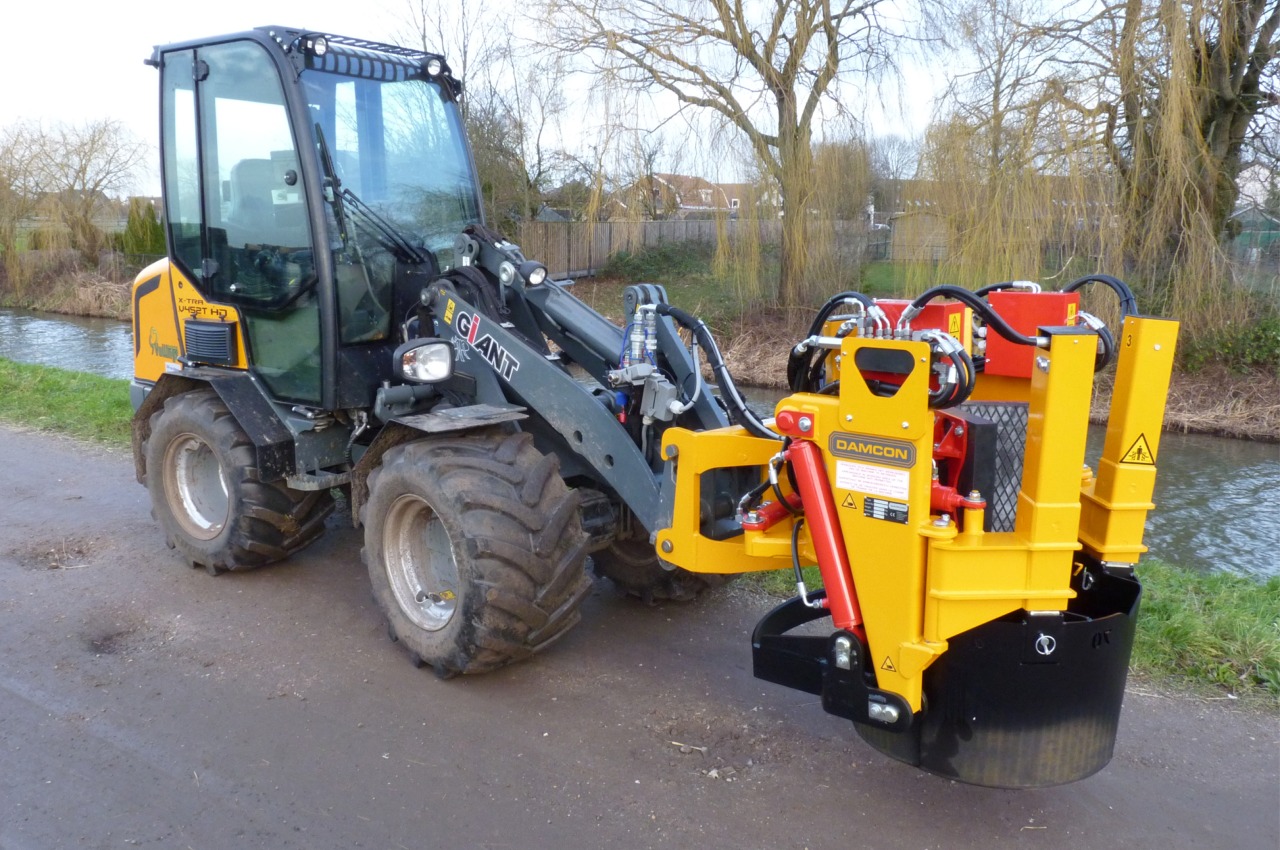

Type III available in KLR-700 ST-V AB, KLR-800 ST-V AB.
