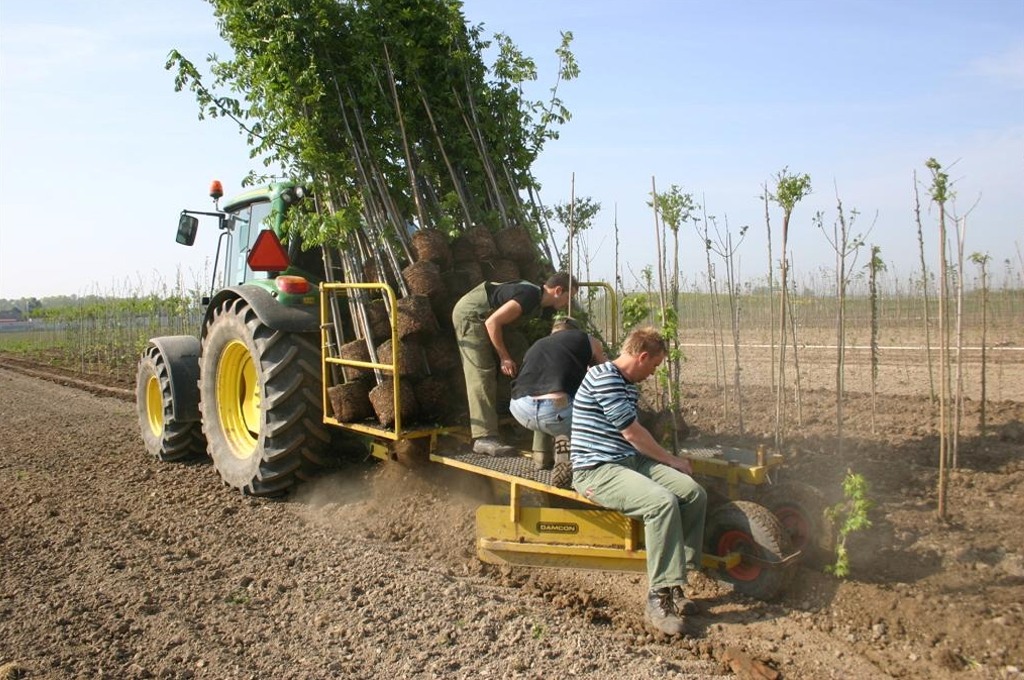

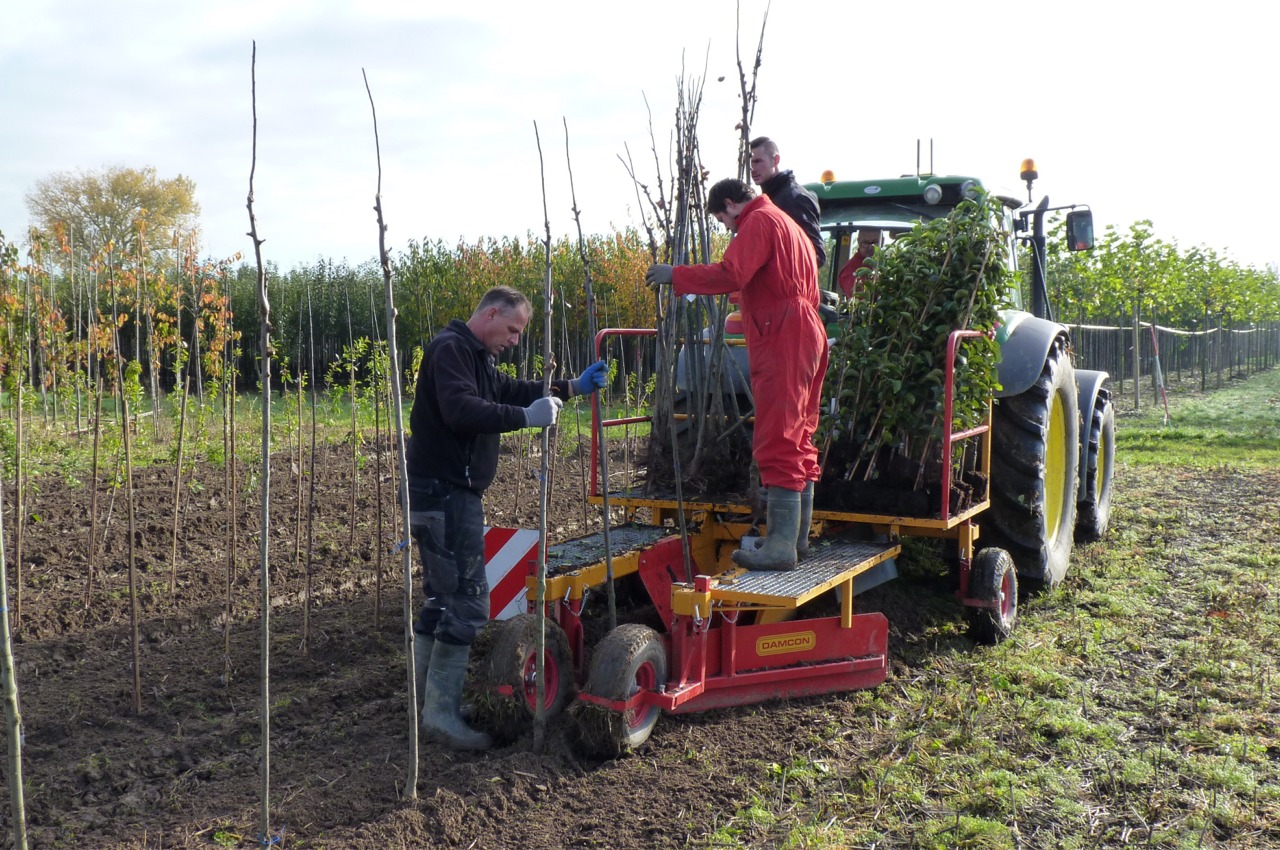

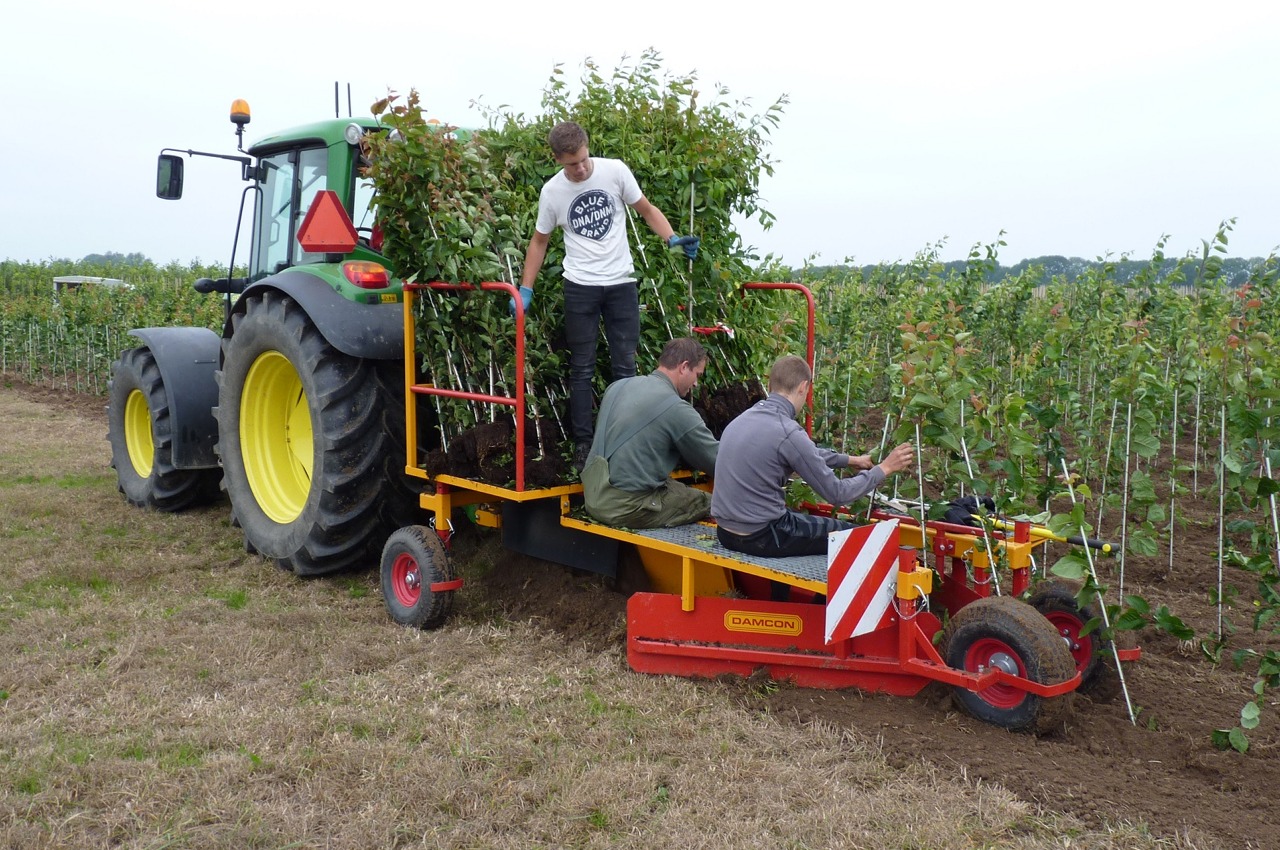

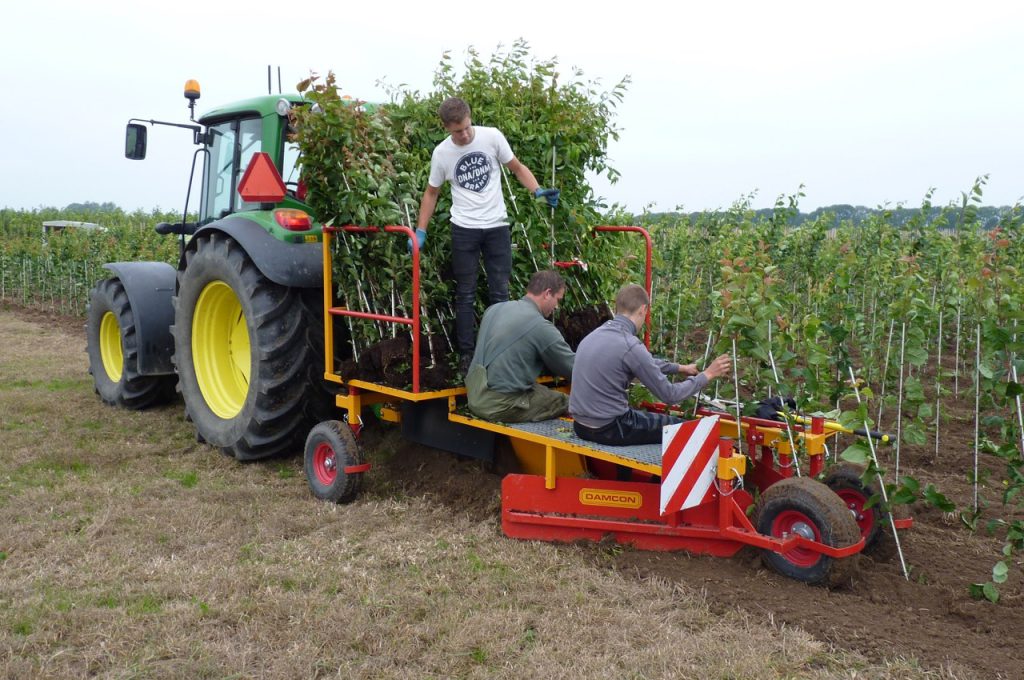

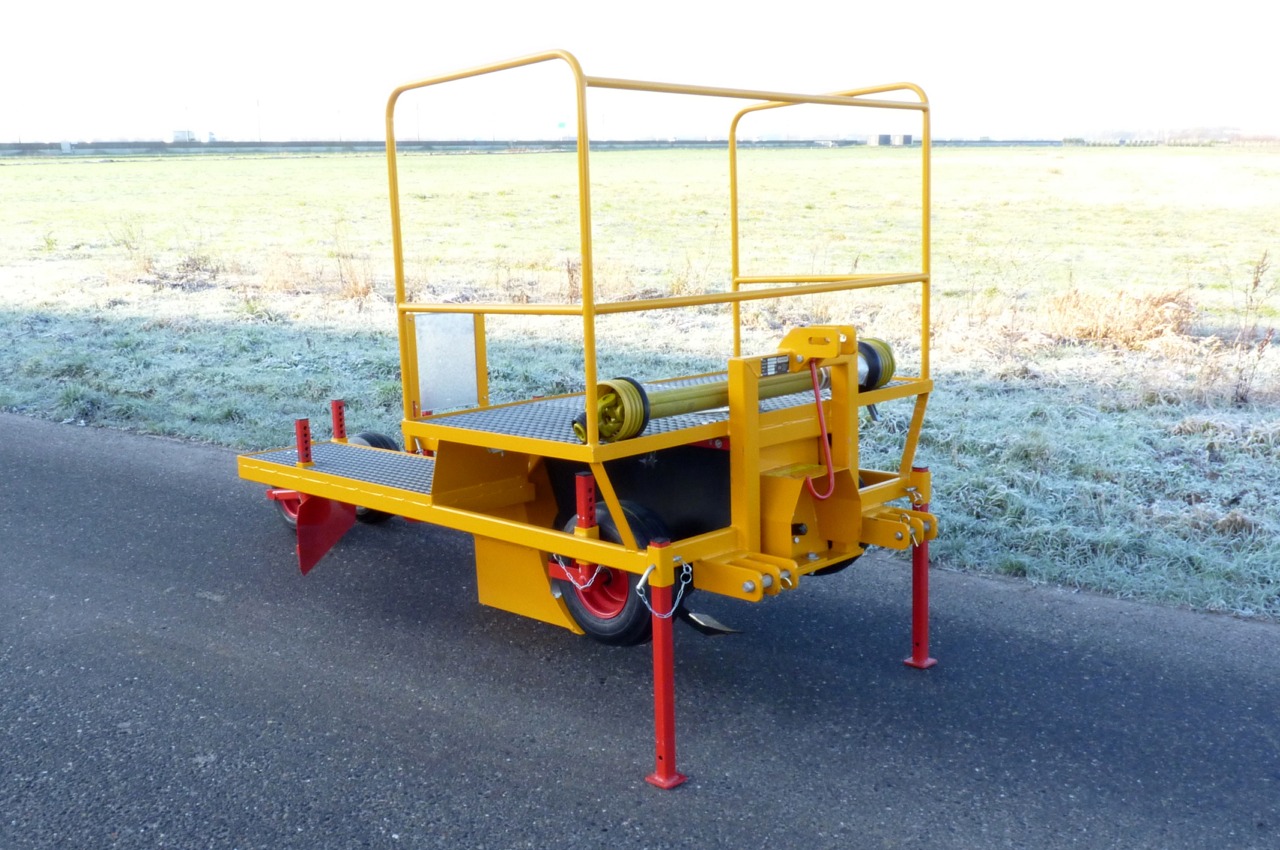

Tree planting machines PL-30 and PL-40

The larger tree planting machines PL-30 and PL-40 from the Damcon programm are equipped with a heavy and high-quality digger element. These machines are suitable for planting avenue trees, fruit trees, shrubs and larger conifers.

The PL-40 has the option of installing a tipping mechanism for planting rootballs.

Possible groove widths for these machines vary between 30 and 40 cm. The groove depths vary between 25 and 35 cm.

Type Tractor Capacity p/day Max. tree girth Root ball diameter Groove width Planting depth
PL-30 40 hp 3.000-4.000 8-10 cm 30 cm 25 cm
PL-40 55 hp 3.000-4.000 18-20 cm 40 cm 35 cm



These tree planting machines can also be equipped with a GPS plant distance marker.
